NEW QUESTION # 22
Consider the exhibit.
Which type of loopback is applied?
- A. Line port terminal Ioopback
- B. Client port facility loopback
- C. Client port terminal Ioopback
- D. Line port facility Ioopback
Answer: C
Explanation:
Explanation
The exhibit shows a diagram of an OT module with a client port and a DWDM port. The client port is looped back to itself with an OEO (Optical-Electrical-Optical) device. This means that the signal received by the client port is converted to an electrical signal, then back to an optical signal, and then transmitted back to the same port. This type of loopback is called a client portterminal loopback. It is used to test the functionality of the client port without involving the DWDM port or any other network element4. A client port facility loopback would involve looping back the signal from the DWDM port to the client port. A line port facility loopback would involve looping back the signal from another OT module or network element to the DWDM port. A line port terminal loopback would involve looping back the signal from the DWDM port to itself5. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Loopback - Wikipedia
NEW QUESTION # 23
Which of the following correctly describes how a unidirectional amplification stage works?
- A. * Incoming optical signals are boosted by the ingress amplifier.
* Outgoing optical signals do not pass through the ingress amplifier. - B. * Incoming optical signals are boosted by the ingress amplifier.
* Outgoing optical signals are also boosted by the ingress amplifier. - C. * Incoming optical signals pass through the ingress amplifier but are not boosted.
* Outgoing optical signals are boosted by the ingress amplifier. - D. * Incoming optical signals are boosted by the ingress amplifier.
* Outgoing optical signals pass through the ingress amplifier but are not boosted.
Answer: A
Explanation:
Explanation
A unidirectional amplification stage works by boosting the incoming optical signals by the ingress amplifier, while the outgoing optical signals do not pass through the ingress amplifier. This means that the ingress amplifier only amplifies the signals in one direction, hence the name unidirectional. This configuration is typically used for point-to-point links or ring networks where bidirectional amplification is not required or desired1. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia
NEW QUESTION # 24
Suppose a channel-related alarm is reported on an 1830 PSS node, and is related to a possible Wave Keys clock source issue. What is the recommended order for the following troubleshooting steps?
- A. 1. Retrieve the channel power trace.
2. Determine the active clock reference source.
3. Switch to alternate clock source (PF).
4. Replace the suspect PF. - B. 1. Replace the suspect PF.
2. Retrieve the channel power trace.
3. Switch to alternate clock source (PF).
4. Determine the active clock reference source. - C. 1. Retrieve the channel power trace.
2. Replace the suspect PF.
3. Determine the active clock reference source.
4. Switch to alternate clock source (PF). - D. 1. Determine the active clock reference source.
2. Replace the suspect PF.
3. Retrieve the channel power trace.
4. Switch to alternate clock source (PF).
Answer: A
Explanation:
Explanation
The recommended order for the troubleshooting steps is A, as follows:
* Retrieve the channel power trace. This step is useful to identify the affected channel and its power level, as well as to check if there are any fluctuations or anomalies in the power trace that could indicate a clock source issue1.
* Determine the active clock reference source. This step is necessary to verify which clock source is currently used by the node, and if it matches the expected configuration. The clock source can be either a local oscillator (LO) or a phase-locked loop (PLL) that synchronizes with an external reference2. The active clock source can be determined by using the command show interface ot 1/1/lineout detail3.
* Switch to alternate clock source (PF). This step is helpful to isolate the problem and confirm if the suspect PF is indeed causing the channel-related alarm. By switching to an alternate clock source, such as another PF or an external reference, the node can recover from the alarm if the original clock source was faulty4.
* Replace the suspect PF. This step is the final solution to resolve the issue and restore the normal operation of the node. The suspect PF should be replacedwith a new one that has the same specifications and configuration as the original one5. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical User Guide - Nokia, Alcatel-Lucent 1830 PSS-8 and PSS-16 Photonic Service Switch
NEW QUESTION # 25
Which of the following statements about the "config powermgmt egress 1/2 adjust status command" is TRUE?
- A. The command enables power adjustment feature on the specified egress amplifier, as this feature Is always and only available at the egress amplification stage.
- B. The command enables power adjustment feature on the specified egress amplifier.
- C. The command displays the status of power adjustment on the specified egress amplifier.
- D. The command displays commissioning status and WT decoder usage for the specified egress amplifiers only, as this feature is always and only done in the egress direction.
Answer: B
Explanation:
Explanation
The command config powermgmt egress 1/2 adjust status is used to enable or disable the power adjustment feature on the specified egress amplifier. The power adjustment feature is a function that automatically adjusts the output power of an amplifier to compensate for changes in the input power or the number of channels. This feature can be enabled or disabled on both ingress and egress amplifiers, depending on the network configuration and requirements1. Therefore, the statement C is true. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia
NEW QUESTION # 26
Consider the exhibit. Given the following power readings, what is the calculated span loss from Node A to Node B?
- A. 2.5
- B. 11.5
- C. 8.0
- D. 1.5
Answer: C
Explanation:
Explanation
The exhibit shows a diagram of a network with two nodes, Node A and Node B, connected by a fiber span.
The diagram also shows the power readings at different points of the span. The calculated span loss from Node A to Node B is the difference between the output power at Node A and the input power at Node B. According to the diagram, the output power at Node A is +3.5 dBm and the input power at Node B is -4.5 dBm.
Therefore, the span loss from Node A to Node B is 3.5 - (-4.5) = 8.0 dB.
NEW QUESTION # 27
Which of the following statements best describes the output of the CLI command: show wavekey wtmonitor
1/6/LINE summary?
- A. A list of all channels detected against the selected interface, including Wave Keys pair, channel status, expected and measured power, allowed deviation, and tolerance.
- B. A list of the unexpected channels detected against the selected interface.
- C. A list of all channels on this interface for which any Wave Keys pair is being received.
- D. A list of all channels detected against the selected interface (in and out); it shows if a Wave Keys pair is expected, if a Wave Keys pair is received, and if the received Wave Keys pair is unexpected.
Answer: D
Explanation:
Explanation
The command show wavekey wtmonitor 1/6/LINE summary displays a list of all channels detected against the selected interface (in and out); it shows if a Wave Keys pair is expected, if a Wave Keys pair is received, and if the received Wave Keys pair is unexpected. A Wave Keys pair is a pair of unique identifiers that are transmitted along with an optical channel to provide channel identification and monitoring functions. The command can be used to verify the presence and correctness of the Wave Keys pairs on an interface and to detect any mismatch or misconfiguration. The other options are incorrect because they either describe a different command or provide incorrect information. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide
NEW QUESTION # 28

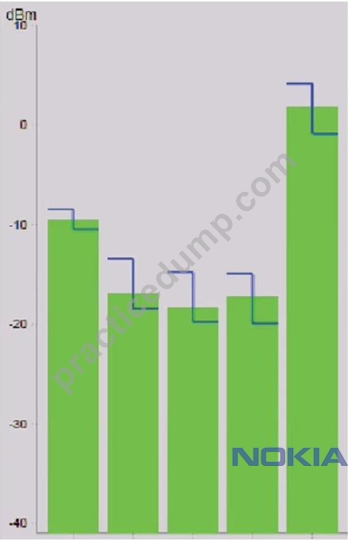

Consider the exhibit. What do the different colored green columns indicate?
- A. Optical power levels measured at different interfaces throughout the optical path of a single wavelength.
- B. Optical power levels measured for multiple wavelengths against a specific interface.
- C. The average optical power levels measured for multiple wavelengths throughout their shared optical path.
- D. Optical power levels measured multiple times against a specific interface, at 24-hour intervals for the same wavelength.
Answer: A
Explanation:
Explanation
The exhibit shows a graph of optical power levels measured at different interfaces throughout the optical path of a single wavelength. The different colored green columns indicate the optical power levels at different points along the optical path, such as the transmitter, the receiver, and the amplifiers. The graph also shows the expected power levels and the allowed deviation range for each point. The graph can be used to monitor the performance and quality of the optical signal and to identify any potential issues or anomalies. The other options are incorrect because they either describe a different type of graph or do not match the exhibit. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide
NEW QUESTION # 29
What is the default severity level for a Threshold Crossing Alert (TCA) alarm?
- A. Minor
- B. Major
- C. Critical
- D. Warning
Answer: D
Explanation:
Explanation
A Threshold Crossing Alert (TCA) alarm is a type of alarm that indicates that a monitored parameter has crossed a predefined threshold. For example, a TCA alarm can be triggered when the optical power received at a port is too high or too low. The default severity level for a TCA alarm is warning, which means that it does not affect the service but may require attention. The other severity levels are critical, major, and minor, which indicate different degrees of impact and urgency of the alarms. The severity level of a TCA alarm can be changed by the user using the Nokia 1830 Engineering and Planning Tool (EPT) or the Nokia 1350 Optical Management System (OMS). References: Nokia Optical Diagnostics and Troubleshooting Course, Nokia 1830 PSS-32 and PSS-16 Photonic Service Switch Release 8.0 Alarms and Conditions Reference Guide
NEW QUESTION # 30
Suppose a unidirectional amplifier has been plugged into slot 1/13. Which command should the user enter to retrieve the OSC pluggable module type?
- A. show interface 1/13/OSCSFP
- B. show interface 1/13/OSCSFP detail
- C. show interface 1/13/OSC detail
- D. show interface 1/13/OSC
Answer: B
Explanation:
Explanation
The command that the user should enter to retrieve the OSC pluggable module type is show interface
1/13/OSCSFP detail. This command will display detailed information about the OSC interface on slot 1/13, including the type of pluggable module that is installed in it. The pluggable module type can be either SFP or SFP+, depending on the speed and distance requirements of the OSC link. The command will also show other parameters, such as wavelength, frequency, transmit power, receive power, and status. The other commands are incorrect because they either do not show the pluggable module type or have invalid syntax. References: Nokia Optical Diagnostics and Troubleshooting Course, OSFP OCTAL SMALL FORM FACTOR PLUGGABLE MODULE
NEW QUESTION # 31
Which of the following statements best describes the payload type setting?
- A. Payload type attribute is recorded within the client payload and must be entered manually.
- B. Payload type attribute is recorded within the OTN overhead and can be set automatically or manually.
- C. Payload type attribute Is recorded within the client payload and can be set automatically.
- D. Payload type attribute is recorded within the OTN overhead and must be entered manually.
Answer: C
Explanation:
Explanation
The payload type setting is an attribute that is recorded within the client payload and can be set automatically or manually. The payload type setting indicates the type of client signal that is carried by the OTN frame, such as Ethernet, Fibre Channel, or SDH/SONET. The payload type setting can be used for service identification and performance monitoring purposes. The payload type setting can be set automatically by the ML-Series card, which can detect the client signal type and encode it in the payload header. Alternatively, the payload type setting can be set manually by the user using the command config interface <interface> encmode
<encmode> payloadtype <payloadtype>, where <interface> is the client interface name, <encmode> is the encapsulation mode, such as GFP-F or BMP, and <payloadtype> is the client signal type, such as 10GE LAN or FC-1200. The other options are incorrect because they either state that the payload type setting is recorded within the OTN overhead, which is not true, or that it must be entered manually, which is not necessary. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide
NEW QUESTION # 32
Suppose a "Channel Absent" alarm is reported on an 1830 PSS node. What is the recommended order for the following troubleshooting steps?
- A. 1. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
2. Retrieve the cross-connection (XC) details and see what Wave Keys should be present.
3. Check observed Wave Keys against expected Wave Keys.
4. Retrieve the channel power trace. - B. 1. Check observed Wave Keys against expected Wave Keys.
2. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
3. Retrieve the channel power trace.
4. Retrieve the cross-connection (XC) details and see what Wave Keys should be present. - C. 1. Retrieve the channel power trace.
2. Retrieve the cross-connection (XC) details and see what Wave Keys should be present.
3. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
4. Check observed Wave Keys against expected Wave Keys. - D. 1. Retrieve the cross-connection (XC) details and see what virave Keys should be present.
2. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
3. Retrieve the channel power trace.
4. Check observed Wave Keys against expected Wave Keys.
Answer: C
Explanation:
Explanation
The recommended order for the troubleshooting steps is B, as follows:
* Retrieve the channel power trace. This step is useful to identify the affected channel and its power level, as well as to check if there are any fluctuations or anomalies in the power trace that could indicate a channel absent issue1.
* Retrieve the cross-connection (XC) details and see what Wave Keys should be present. This step is necessary to verify which Wave Keys are expected to be present on the node, card, and port based on the XC configuration2. Wave Keys are unique identifiers for wavelength tracking that are encoded by Optical Transponders (OTs) into each service wavelength direction3.
* Go to the suspected troubled node / card / port and look at Wave Keys (in / out). This step is helpful to compare the observed Wave Keys with the expected Wave Keys, and to locate the source of the problem. If a Wave Key is missing or mismatched, it means that there is a channel absent issue on that node, card, or port4.
* Check observed Wave Keys against expected Wave Keys. This step is the final solution to resolve the issue and restore the normal operation of the node. The observed Wave Keys should match the expected Wave Keys based on the XC configuration. If not, the XC configuration should be corrected or the faulty node, card, or port should be replaced5. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical User Guide - Nokia, Alcatel-Lucent 1830 PSS-8 and PSS-16 Photonic Service Switch
NEW QUESTION # 33
Suppose a network operator needs to configure the 10GbE client interface 1/7/C1 with a GFP-F encapsulation mode. Which command should be used?
- A. config encmode interface 1/7/C1 tenGige gfp-f
- B. config interface 1/7/C1 tenGige encmode gfp-f
- C. config encmode interface 1/7/C1 10client gfp-f
- D. config interface 1/7/C1 encmode 10client gfp-f
Answer: D
Explanation:
Explanation
The command that should be used to configure the 10GbE client interface 1/7/C1 with a GFP-F encapsulation mode is config interface 1/7/C1 encmode 10client gfp-f. This command will set the encapsulation mode of the interface to GFP-F, which is a frame-mapped generic framing procedure that encapsulates Ethernet frames with a GFP header. The command also specifies that the interface is a 10GbE client interface, which means that it supports 10 Gigabit Ethernet LAN signals. The other commands are incorrect because they either have invalid syntax or use incorrect parameters for the interface or the encapsulation mode. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide
NEW QUESTION # 34
Consider the exhibit. A single directional fiber cut is occurring between two amplifiers in unidirectional configuration with Raman pump.
Multiple services are crossing the affected span.
Which node(s) will report an Incoming Payload LOS" alarm?
- A. Node C only.
- B. Neither Node A nor Node C.
- C. No node, as a Raman pump is used in Node A.
- D. Both Node A and Node C
Answer: D
Explanation:
Explanation
A single directional fiber cut is occurring between two amplifiers in unidirectional configuration with Raman pump. Multiple services are crossing the affected span. The node(s) that will report an Incoming Payload LOS alarm are both Node A and Node C. An Incoming Payload LOS alarm indicates that there is no or very low signal at the input port of a node. In the exhibit, Node A will report this alarm because it will not receive any signal from Node B due to the fiber cut. Node C will also report this alarm because it will not receive any signal from Node D due to the fiber cut. The Raman pump in Node A does not prevent this alarm, as it only amplifies the signal in the forward direction, not the backward direction. The other options are incorrect because they either ignore one of the nodes that will report the alarm or assume that the Raman pump has an effect on the backward direction. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide
NEW QUESTION # 35
Which of the following CLI commands displays a list of the expected and measured output power for the channels whose admin state is up?
- A. config wavekey power detail
- B. config wavekey summary
- C. show wavekey wtsource
- D. show wavekey wtsource power
Answer: D
Explanation:
Explanation
The command show wavekey wtsource power displays a list of the expected and measured output power for the channels whose admin state is up. This command is useful to monitor the power levels of the channels that are encoded with Wave Keys, which are unique identifiers for wavelength tracking. The command output shows the channel number, wavelength, Wave Key ID, Wave Key Code, expected output power, measured output power, and power difference for each channel1. The command can be used on both OTs and amplifiers that support WT capability2. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical User Guide - Nokia
NEW QUESTION # 36

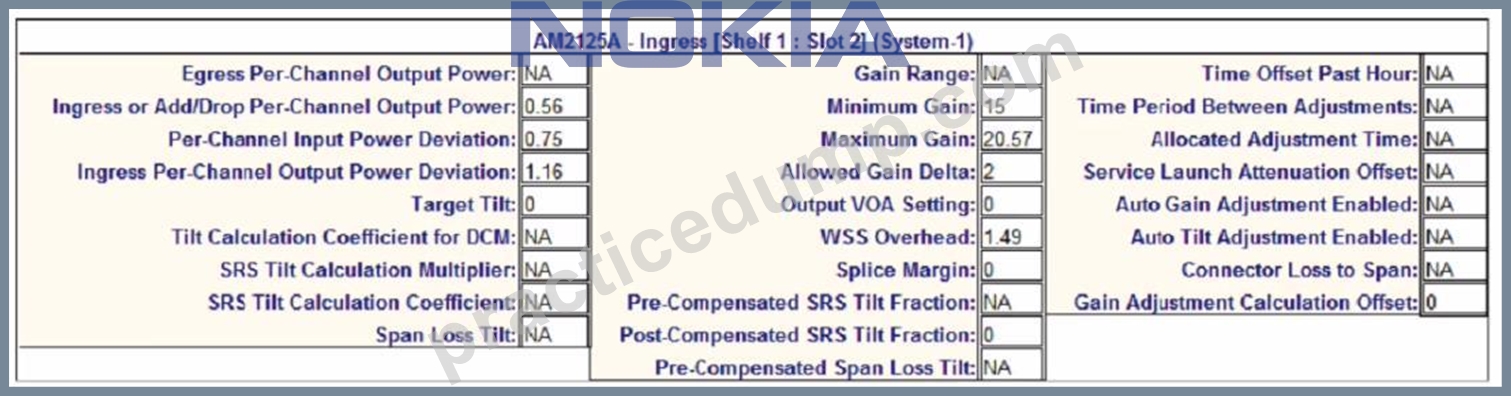

Consider the exhibit which shows an EPT Power Management Report referring to an ingress amplifier. What is the available output optical power range?
- A. -0.6 to 1.72 dB
- B. -0.02 to 1.14 dB
- C. 0.56 to 1.14 dB
- D. 0.56 to 1.72 dB
Answer: A
Explanation:
Explanation
The available output optical power range is the same as in question 5, since the EPT Power Management Report refers to the same ingress amplifier with the same settings and parameters. Therefore, the answer is also A, -0.6 to 1.72 dB. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, EPT Power Management Report | Nokia
NEW QUESTION # 37
Consider the exhibit which shows an EPT Power ManagementReport for an ingress amplifier.
What is the available output optical power range?
- A. -0.6 to 1.72 dB
- B. -0.02 to 1.14 dB
- C. 0.56 to 1.14 dB
- D. 0.56 to 1.72 dB
Answer: A
Explanation:
Explanation
The available output optical power range is the difference between the maximum gain and the minimum gain range of the ingress amplifier. According to the EPT Power Management Report, the maximum gain is 25.7 dB and the minimum gain range is 14 dB. Therefore, the available output optical power range is 25.7 - 14 =
11.7 dB. To convert this to a logarithmic scale, we use the formula 10^(x/10), where x is the value in dB.
Therefore, the available output optical power range in logarithmic scale is 10^(11.7/10) - 10^(14/10) = 14.68 -
25.12 = -0.6 to 1.72dB. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, EPT Power Management Report | Nokia
